Malleable Iron Overhead Line Socket Clevis Eye

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description


Name: Socket Clevis Eyes Application: Overhead Line Fitting
Technical Requirements: IEC 61284-1997 Material: Malleable Iron
Brand: LJ Certificate: ISO9001/CE/ROHS
High Light:

Overhead Line Socket Clevis Eye

,

Malleable Iron Socket Clevis Eye

,

IEC 61284 1997 Socket Clevis Eye


Socket Clevis Eyes

Socket Clevis Eyes is used for connecting the overhead line fitting strings with the insulator ball end end, and supporting other fittings to form one insulator fitting string, and connecting the wire to the poles or towers.

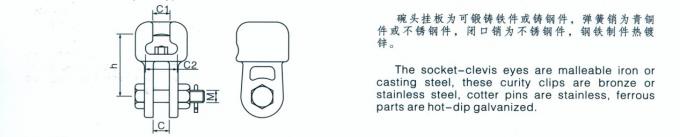

• The socket-clevis eyes are malleable iron or casting steel,cotter-pins are stainless steel.the other parts are steel, all ferrous parts are hot-dip galvanized;

• Meet the technical requirements of IEC 61284-1997 and conform to IEC 60120 coupling code 16,20 and 24

Malleable Iron Overhead Line Socket Clevis Eye 0

Technical data sheet

Catalog No.
Dimensions Rated Failure Load Weight
C C1 C2 M h
WS-7 18 19.2 34.5 16 70 70 0.97
WS-10 20 19.2 34.5 18 85 100 1.20
WS-12 24 23.0 42.5 22 90 120 1.80
WS-16 26 23.0 42.5 24 95 160 2.60
WS-21 30 27.5 51.0 27 100 210 4.30
WS-30 38 27.5 51.0 36 110 300 5.70
WS-16G 22 23.0 42.5 24 95 160 2.64
WS-21G 24 23.0 42.5 24 105 210 3.50
WS-32G 32 27.5 51.0 30 110 320 4.80
WS-42G 36 32.0 59.0 36 120 420 5.60
WS-55G 40 36.0 67.5 42 140 550 11.0

Malleable Iron Overhead Line Socket Clevis Eye 1

Technical data sheet

Catalog No.
Dimensions Rated Failure Load Weight
b C1 C2 h φ
W-7A 16 19.2 34.5 70 20 70 0.82
W-7B 16 19.2 34.5 115 20 70 1.01
W1-10 18 19.2 34.5 85 20 100 0.90
W1-12 20 19.2 34.5 90 24 120 1.30
W-12 20 23.0 42.5 90 24 120 1.40
W-30 32 27.5 51.0 110 39 300 3.50
