L450 4 Bundled Spacer Dampers Electric Power Fitting

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description


Name: 4 Bundled Spacer Dampers Weight: 7.5 10.4
Dimensions: 450 500 Material: Aluminum Alloy
Brand: LJ Certificate: ISO9001/CE/ROHS
High Light:

L450 Electric Power Fitting

,

L450 4 Bundled Spacer Dampers

,

L450 Dampers Electric Power Fitting


Four bundled Spacers-dampers (Type FJZ)

The spacers-damper is mounted on the bundled conductor to fix the space between the bundled conductors and in the event of a short circuit, no electromagnetic force is generated between the bundled conductor, which can also play a certain role in suppressing the oscillation of the sub-range and the vibration of breeze.

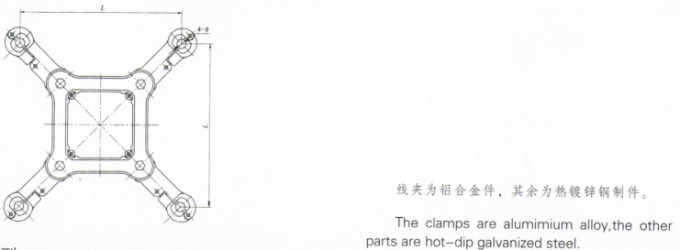

• The clamp are made of aluminum alloy and the other parts are hot-dip galvanized;

L450 4 Bundled Spacer Dampers Electric Power Fitting 0

Technical data sheet

Catalog No.LFJZ-445F/27BFJZ-445F/30BFJZ-445F/34BFJZ-450F/34BFJZ-450F/36B
Suitable Conductor Dimensions Weight
φ
400/35 450 27 7.5
500/45 450 30 7.5
630/45 450 34 7.5
630/45 500 34 10.4
720/50 500 36 10.4
