Aluminium Alloy H72mm Power Line Fittings For Bus Bar Supports

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description

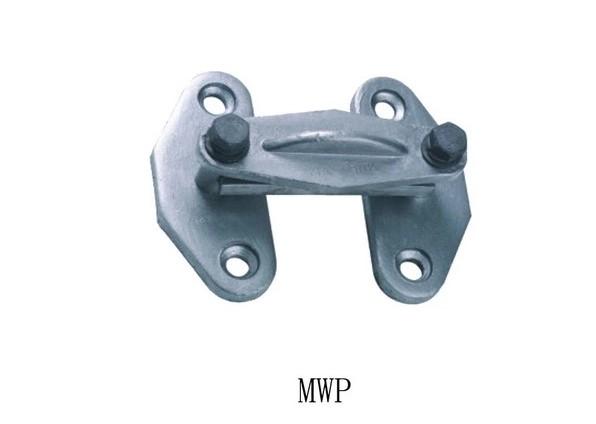

Name: Outdoor Supports For Bus-bar/Substation Fittings Material: Aluminium Alloy+hot-dip Galvanized Steel
Certificate: ISO9001/CE/ROHS Type: MWP
Brand Name:: LJ Application:: Bus-bar Supports
High Light:

Aluminium Alloy Power Line Fittings

,

H72mm Power Line Fittings

,

H72mm Bus Bar Supports

Outdoor Supports For Bus-bar/Substation Fittings

Substation fittings also called heavy-current bus-bar fittings,it include the fittings which fix and support the cord,rope-lay stranded conductor and kinds of rigid busbar of the power distribution equipments in the power station and substation.According to rigid busbar,there are rectangular bus bars,rhombus bus bars and channel bus bars which fix with the flexible busbar.

Application: bus-bar supports

Material: aluminium alloy+hot-dip galvanized steel

Place of origin: China

Payment way: T/T

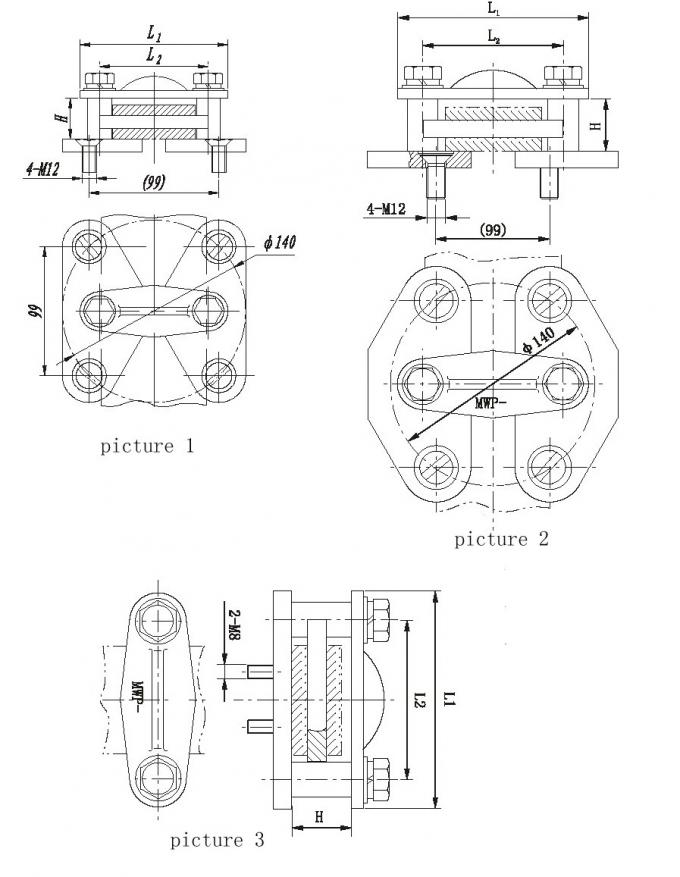

Drawing:

MWP(Horizontal type)

HTB1gBnCHFXXXXb_XXXXq6xXFXXXU


TYPE APPLICABLE BUS BAR MAIN DIMENSIONS(mm) FIG NO. Installation dimension
Width(mm) Qty.(PC) H L1 L2
MWP-101 63 1 6 113 83 1
MWP-102 80 12 130 100 The matched composite pillar insulator model as below:
MWP-103 100 150 120 2 FZSW4-12/8
MWP-104 125 175 145 FZSW4-24/8
MWP-201 63 2 32 113 83 1 FZSW4-40.5/6
MWP-202 80 130 100
MWP-203 100 150 120 2
MWP-204 125 175 145
MWP-301 63 3 52 113 83 1
MWP-302 80 130 100
MWP-303 100 150 120 2
MWP-304 125 175 145
MWP-401 63 4 72 113 83 1
MWP-402 80 130 100
MWP-403 100 150 120 2
MWP-404 125 175 145
MWP-105 63 1 6 113 83 3
MWP-106 80 12 130 100 The matched composite pillar insulator model as below:
MWP-107 100 150 120 FZSW4-12/4-2×M8
MWP-108 125 175 145 FZSW2-35/6-2×M8
MWP-205 63 2 32 113 83
MWP-206 80 130 100
MWP-207 100 150 120
MWP-208 125 175 145
MWP-305 63 3 52 113 83
MWP-306 80 130 100
MWP-307 100 150 120
MWP-308 125 175 145

Remark:

1.The upper cover plate and septum is aluminum alloy ,other parts are hot-dip galvanized steel;
2.Please note if the hole distance of the matched supporting insulator which you require is different from the above table.
3.Please add “J” before the model or remark the requirements if it is used for insulation busbar when select the model.
