Female T Connector Power Line Fittings For Tubular Bus Bar

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description

Material:: Body And Pressure Lid Are Made Of Aluminum, Other Parts Are Hot Dip Galvanized Steel Suitable Conductors:: Tubular Bus-bar
Name: Terminal Connector Brand Name:: LJ
Gender:: Female Type:: ADAPTER
High Light:

T Connector Power Line Fittings

,

Tubular Bus Bar T Connector

,

Tubular Busbar Power Line Fittings

T Type Connector for Tubular Bus-bar cable

Place of Origin:China

Brand Name:LJ

Model Number:MGT

Type:ADAPTER

Gender: Female

Suitable conductors: Tubular Bus-bar

Description:

Substaion fittings also called heavy-current bus-bar fittings,it include the fittings which fix and support the cord,rope-lay stranded conductor and kinds of rigid busbar of the power distribution equipments in the power station and substation.According to rigid busbar,there are rectangular bus bars,rhombus bus bars and channel bus bars which fix with the flexible bus bar.

Technical Parameters:

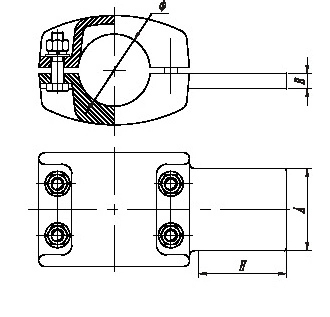

Type Spec.of applicable busbar MAIN DIMENSIONS(mm)
Ø A H B
MGT-30 Ø30/25 30 60 65 14
MGT-40 Ø40/35 40 60 65 14
MGT-50 Ø50/45 50 60 75 14
MGT-60 Ø60/54 60 60 75 14
MGT-70 Ø70/64 70 80 85 16
MGT-80 Ø80/72 80 80 85 16
MGT-100 Ø100/90 100 100 105 18
MGT-110 Ø110/100 110 100 105 18
MGT-120 Ø120/110 120 100 105 18
MGT-130 Ø130/116 130 125 130 20
MGT-150 Ø150/136 150 125 130 20
MGT-170 Ø170/156 170 150 160 22
MGT-200 Ø200/180 200 160 170 22
MGT-250 Ø250/230 250 170 180 24

Note: 1. Body and pressure lid are made of aluminum, other parts are hot dip galvanized steel

2. The deflectors according to user needs, when ordering, please specify wire models.
