LJ IEC61109 Composite Polymer Deadend Insulator

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description


Application: Power Line Material: Composite Polymer
Certification:: ISO9001/IEC Insulator Type: Composite Suspension Insulator
Color:: Red Or Grey Usage:: Insulation Protection
High Light:

Composite Polymer Deadend Insulator

,

IEC61109 Polymer Deadend Insulator

,

LJ Polymer Deadend Insulator

Suspension Composite Insulator Polymer Dead End Insulator

Model Number: OEM

Material: Composite Polymer

Insulator type: Composite Suspension Insulator

Application: power line

Usage: Insulation Protection

Color: red or grey

Certification: ISO9001/ IEC

MOQ: negotiable

Description:

Dead end insulators fulfill the requirements of IEC61109, the sheds of the insulators are made of highly hydrophobic silicon rubber. The core is made of corrosion resistant fiber glass rod and the end fittings are made of hot-dip galvanized steel. They are used on 12kV up to 36kV distribution networks.

Specifications:

Type
CDI-12/70 CDI-24/70 CDI-36/70
Rated Voltage 12kV 24kV 36kV
Sepcified Mechanical Load 70kN 70kN 70kN
Section Length H 350mm 440mm 530mm
Dry Arcing Distance h 180mm 300mm 404mm
Leakage Distance 430mm 660mm 990mm
Power Frequency Dry Flashover 110kV 130kV 200kV
Power Frequency Wet Flashover 75kV 110kV 160kV
Number of Sheds 4 6 9

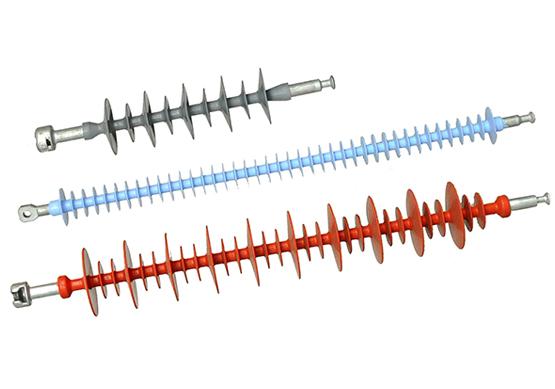

LJ IEC61109 Composite Polymer Deadend Insulator 0

Packing and Shipping

We can choose different packing plans for different products, also can according to customers’ requirements. We deliver products to customers by sea or air, according to your needs.
