Aluminium T Type Cable Clamp Power Line Fittings
- Detail Information
- Product Description
| Material:: | Aluminium | Measurement System:: | Metric |
|---|---|---|---|
| Name: | T Type Cable Clamp | Brand Name:: | LJ |
| Model Number:: | TY | Structure:: | T Type Clamp |
| High Light: |
Cable Clamp Power Line Fittings, Aluminium Power Line Fittings, Aluminium T Type Cable Clamp |
||
Electrical wire connector hydraulic aluminum T type cable clamp
Measurement system:Metric
Place of Origin: China
Brand Name:LJ
Model Number:TY
Material: Aluminium
Structure:T type clamp
Description:
T-type clamps are mainly used for overhead power lines or substations, and lead the current branch in the "T" type on the trunk of the bus. It is divided into bolt type and compression type. For small cross-section wires, parallel groove clamps can also be used for T-type connection.
Technical parameter:

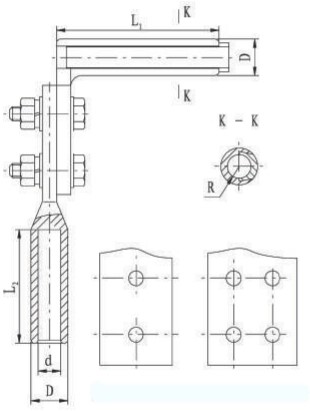

| Applicable conductor model | Dimensions(mm) | |||||
| D | d | R | L1 | L2 | ||
| TY-35/6 | LGJ-35/6 | 18 | 9.7 | 4.8 | 80 | 60 |
| TY-50/8 | LGJ-50/8 | 18 | 11 | 5.5 | 80 | 60 |
| TY-70/10 | LGJ-70/10 | 22 | 13 | 6.5 | 100 | 70 |
| TY-95/15~20 | LGJ-95/15~20 | 26 | 16 | 7.5 | 115 | 80 |
| TY-120/7 | LGJ-120/7 | 26 | 16 | 8.0 | 115 | 80 |
| TY-120/20~25 | LGJ-120/20~25 | 26 | 17.2 | 8.6 | 115 | 80 |
| TY-150/8~20 | LGJ-150/8~20 | 30 | 18.2 | 9.1 | 125 | 90 |
| TY-150/25~35 | LGJ-150/25~35 | 30 | 19 | 9.5 | 125 | 90 |
| TY-185/10~30 | LGJ-185/10~30 | 32 | 20.5 | 10.3 | 125 | 90 |
| TY-185/40 | LGJ-185/40 | 32 | 21.5 | 10.8 | 125 | 90 |
| TY-240/30~40 | LGJ-240/30~40 | 36 | 23 | 11.5 | 135 | 100 |
| TY-240/55 | LGJ-240/55 | 36 | 24 | 12 | 135 | 100 |
| TY-300/15~20 | LGJ-300/15~20 | 40 | 25 | 12.5 | 145 | 110 |
| TY-300/25~40 | LGJ-300/25~40 | 40 | 25.5 | 12.8 | 145 | 110 |
| TY-300/50 | LGJ-300/50 | 40 | 26 | 13 | 145 | 110 |
| TY-300/70 | LGJ-300/70 | 42 | 27 | 13.5 | 145 | 110 |
