Standard Type 120kN Pin Insulator Glass Insulator
- Detail Information
- Product Description
| Application: | High Voltage | Material: | Glass |
|---|---|---|---|
| Certification:: | ISO9001/IEC | Insulator Type: | Disc Insulator |
| Usage:: | Insulation Protection | ||
| High Light: |
120kN Pin insulator Glass insulator, Standard Type Pin insulator Glass insulator, 120kN Suspension Disc Insulator |
||

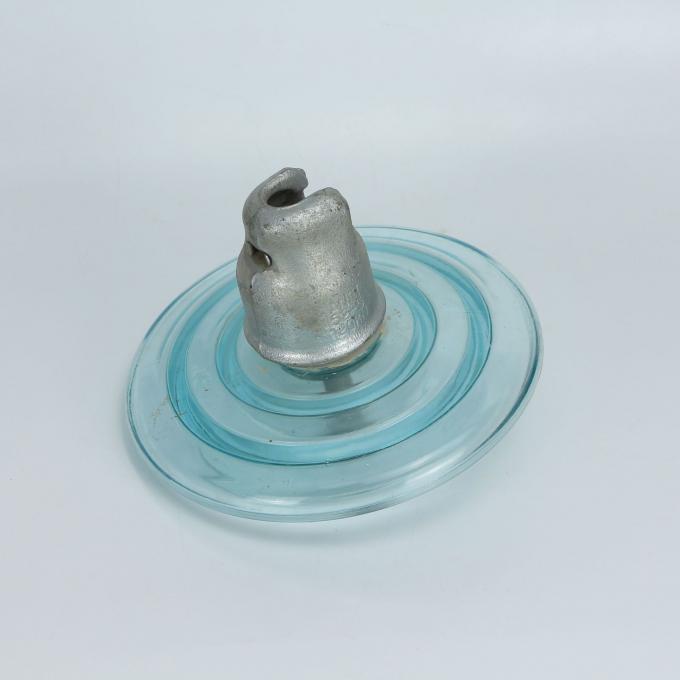

70kN 120kN Toughened Glass Suspension Disc Insulator Standard Type
Model Number: OEM
Material: glass
Insulator type:Disc Insulator
Application: High Voltage
Usage: Insulation Protection
Certification: ISO9001/IEC
MOQ: negotiable
Sample: Sample Available
| U40B/110 | U70B/140 | U100B/140 | U120B/146 | U160B/170 | ||
| Main dimension,mm | D | 178 | 255 | 255 | 255 | 280 |
| H | 110 | 140 | 146 | 146 | 170 | |
| Creepage distance(mm) | 185 | 320 | 320 | 320 | 400 | |
| Socket Coupling(mm) | 11 | 16 | 16 | 16 | 20 | |
| Mechanical failing load( mm) | 40 | 70 | 100 | 120 | 160 | |
| Mechanical routne test(kN) | 20 | 35 | 50 | 60 | 80 | |
| Wetpower frequency withstand voltage(kV) | 25 | 40 | 40 | 40 | 45 | |
| Dry lightning lipulse withstand voltage(kV) | 50 | 100 | 100 | 100 | 110 | |
| Impuise puncture volltage(P.U) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Power frequency puncture vollage (kV) | 90 | 130 | 130 | 130 | 130 | |
| Radio influence voltage(μV) | 50 | 50 | 50 | 50 | 50 | |
| Corona visual test (kV) | 18/22 | 18/22 | 18/22 | 18/22 | 18/22 | |
| Power frequency electric arc voltage | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | |
Packing and Shipping
We can choose different packing plans for different products, also can according to customers’ requirements. We deliver products to customers by sea or air, according to your needs.
