ISO9001 OEM Post Pin Insulator Glass Insulator
| Application: | High Voltage | Material: | Porcelain, Ceramics |
|---|---|---|---|
| Certification:: | ISO9001/IEC | Insulator Type: | Post Insulator |
| Color:: | Brown | Usage:: | Insulation Protection |
| High Light: |
Post Pin Insulator Glass Insulator
OEM Pin Insulator Glass Insulator
ISO9001 Pin Insulator Glass Insulator |
||

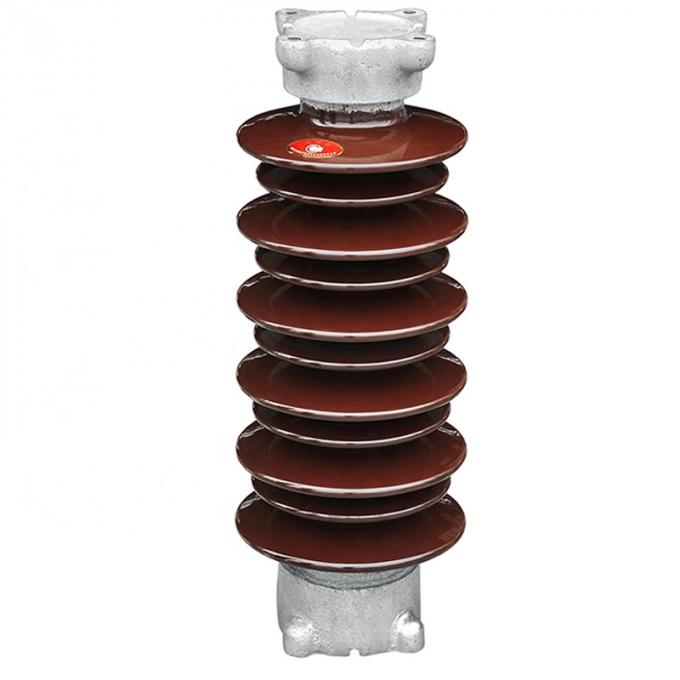

High Voltage Post Type Porcelain Insulator Ceramics Insulator
Model Number: OEM
Material: Porcelain, ceramics
Insulator type:post insulator
Application: High Voltage
Usage: Insulation Protection
Color: brown
Certification: ISO9001/IEC
Sample: Sample Available
Description:
The post insulator is a special insulation control that can play an important role in overhead transmission lines. In the early years, post insulators were mostly used for telephone poles. They were slowly developed at the end of high-type high-voltage wire connection towers. A lot of hanging insulators were hung on it. Insulators play two basic roles in overhead transmission lines, namely supporting wires and preventing current from returning to ground. These two roles must be ensured. Insulators should not fail due to flashover breakdown due to changes in environmental and electrical load conditions Otherwise, the insulator will lose its function and damage the use and operating life of the entire line.
Specifications:
| Low-frequency Flashover Voltage | Positive Impulse Flashover Voltage | Radio-interferencVoltage | Creepage Distance | Dry Arcing Distance | Height | Bending Strength | Standard Dia Of Insulator | Standard threaded size of the middle hole | ||
| We(kV) | kV | Test Voltgae(kV) | MaxRIV2(μV) | Inch | Inch | Inch | Pound | Inch | Inch | |
| 70 | 50 | 120 | 15 | 100 | 14 | 6.5 | 9 | 2800 | 5.5 | 3/4 |
| 100 | 70 | 160 | 22 | 100 | 22 | 9.5 | 12 | 2800 | 6 | 3/4 |
| 125 | 95 | 200 | 30 | 200 | 29 | 12.25 | 15 | 2800 | 6.5 | 3/4 |
| 140 | 110 | 230 | 44 | 200 | 40 | 14.5 | 17 | 2800 | 7 | 3/4 |
| 160 | 130 | 265 | 44 | 200 | 45 | 17.25 | 20 | 2800 | 7.5 | 3/4 |
| 180 | 150 | 300 | 44 | 200 | 53 | 19.25 | 23.5 | 2800 | 8 | 7/4 |
MAIN DIMENSIONS AND STANDARD PARTICULARSClassDry(kV)Colligation type on plumb top57-157-257-357-457-557-6
MAIN DIMENSIONS AND STANDARD PARTICULARSTypeDS-185S-185ZS-210S-210ZS-280S-280ZS-380S-380ZS-450S-450Z
| Fig No. | Rated voltage(kV) | Creepage Distance(mm) | Wet Power Frequency Voltage(kV) | 50% Full Wave Impulse Flashover Voltage(kV) | Bending Failing Load(kN) | Weight (kg) | |||||||
| 1 | 10 | 82 | 522 | 440 | 365 | 6.5 | 18 | 40 | 365 | 50 | 210 | 2.5 | 6.0 |
| 2 | 10 | 82 | 522 | 440 | 365 | 6.5 | 18 | 40 | 365 | 50 | 210 | 2.5 | 6.0 |
| 3 | 35 | 115 | 670 | 580 | 490 | 22 | 11 | 40 | 490 | 100 | 280 | 5 | 12.0 |
| 4 | 35 | 115 | 670 | 580 | 490 | 22 | 11 | 40 | 490 | 100 | 280 | 5 | 12.0 |
| 3 | 35 | 135 | 900 | 800 | 700 | 22 | 13 | 50 | 700 | 160 | 380 | 5 | 19.0 |
| 5 | 35 | 135 | 900 | 800 | 700 | 22 | 13 | 50 | 700 | 160 | 380 | 5 | 19.0 |
| 3 | - | 135 | 1020 | 920 | 820 | 22 | 13 | 50 | - | - | - | - | 25.0 |
| 3 | - | 135 | 1020 | 920 | 820 | 22 | 13 | 50 | - | - | - | - | 25.0 |
Packing and Shipping
We can choose different packing plans for different products, also can according to customers’ requirements. We deliver products to customers by sea or air, according to your needs.
