OEM ISO9001 Suspension Pin Insulator Glass Insulator
- Detail Information
- Product Description
| Application: | High Voltage | Material: | Glass |
|---|---|---|---|
| Certification:: | ISO9001/IEC | Insulator Type: | Disc Insulator |
| Color:: | Red Or Grey | Usage:: | Insulation Protection |
| High Light: |
OEM Pin Insulator Glass Insulator, Suspension Pin Insulator Glass Insulator, ISO9001 Toughened glass Insulator |
||

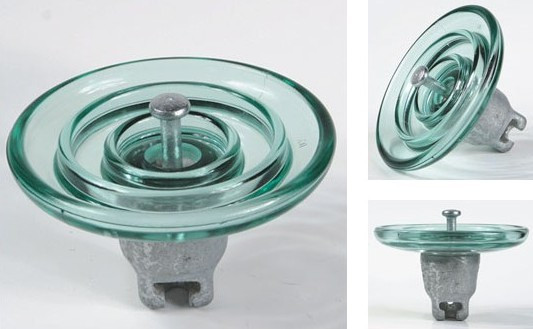

Toughened glass suspension insulator disc insulator standard type
| U40B/110 | U70B/140 | U100B/140 | U120B/146 | U160B/170 | ||
| Main dimension,mm | D | 178 | 255 | 255 | 255 | 280 |
| H | 110 | 140 | 146 | 146 | 170 | |
| Creepage distance(mm) | 185 | 320 | 320 | 320 | 400 | |
| Socket Coupling(mm) | 11 | 16 | 16 | 16 | 20 | |
| Mechanical failing load( mm) | 40 | 70 | 100 | 120 | 160 | |
| Mechanical routne test(kN) | 20 | 35 | 50 | 60 | 80 | |
| Wetpower frequency withstand voltage(kV) | 25 | 40 | 40 | 40 | 45 | |
| Dry lightning lipulse withstand voltage(kV) | 50 | 100 | 100 | 100 | 110 | |
| Impuise puncture volltage(P.U) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Power frequency puncture vollage (kV) | 90 | 130 | 130 | 130 | 130 | |
| Radio influence voltage(μV) | 50 | 50 | 50 | 50 | 50 | |
| Corona visual test (kV) | 18/22 | 18/22 | 18/22 | 18/22 | 18/22 | |
| Power frequency electric arc voltage | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | |
Model Number: OEM
Material: glass
Insulator type:disc insulator
Usage: Insulation Protection
Application: High Voltage
Usage: Insulation Protection
Certification: ISO9001/IEC
Sample: Sample Available
Packing and Shipping
We can choose different packing plans for different products, also can according to customers’ requirements. We deliver products to customers by sea or air, according to your needs.
