IEC 61284 1997 Aluminum Alloy Cable Suspension Clamp

Short Description:


Product Detail

Product Tags

  • Detail Information
  • Product Description


Name: Suspension Clamps(Envelope Type) Standard: IEC 61284 1997
Material: Aluminum Alloy Clamp Body: Aluminum Alloy
Type: Envelope Type Brand: LJ
High Light:

Aluminum Alloy Cable Suspension Clamp

,

IEC 61284 1997 Cable Suspension Clamp

,

IEC 61284 1997 Alloy suspension clamp


Aluminum Alloy Suspension Clamps(Envelope Type)

The suspension clamp is designed for the installation and suspension of cables or conductors on the towers or poles.

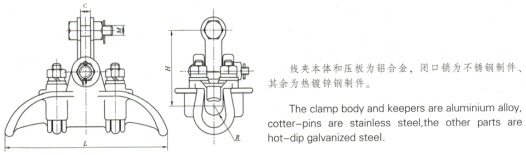

• The clamp body and keepers are aluminum alloy,cotter-pins are stainless steel.the other parts are steel, all ferrous parts are hot-dip galvanized.

• The clamp can be easily installed without damage to the cables or conductors;

• Standard: IEC 61284-1997

Technical data sheet

Catalog No.

Conductor Dia. Dimensions

Rated Failure Load

Weight
L C R H M
XG-4022 13.2-22.0 210 20 11 120 16 40 2.9
XG-4028 19.6-28.0 250 20 14 130 16 40 3.5
XG-4034 27.4-34.0 280 20 17 130 16 40 4.0
XG-6028 19.6-28.0 250 20 14 130 16 60 3.5
XG-6034 27.4-34.0 300 20 17 130 16 60 4.0
XG-6040 32.0-40.0 300 20 20 135 16 60 4.8
XG-6046 36.8-46.0 330 20 23 135 16 60 5.4
XG-8034 27.4-34.0 300 20 17 130 16 80 4.8
XG-8040 32.0-40.0 300 20 20 140 16 80 5.0
XG-8046 36.8-46.0 330 20 23 140 16 80 5.8
XG-8054 43.2-54.0 345 20 27 150 16 80 7.0

IEC 61284 1997 Aluminum Alloy Cable Suspension Clamp 0
